Flexible Clamp Chrome Plated Pipe Connectors Use For Stainless Pipe

Quick Detail:

1. Material:2.5 mm Thickness SPCC steel

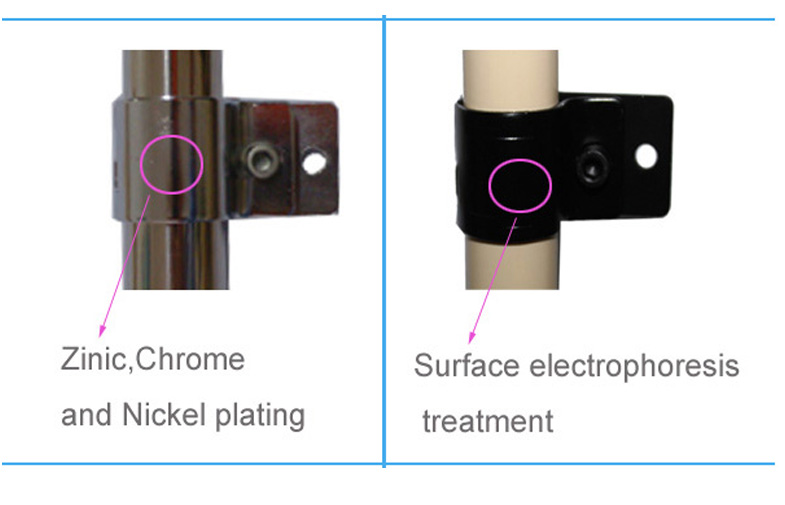

2.Surface Treatment :Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome

plated(Silvery one)

3. Production procedure:SPCC Steel plate → Cutting → Model →Stamping →Polish→
Electrophoresis or Chrome Plating.

4. Weight :0.07kg/set.

5. Fixed form:Fixed by M6*25 or M6*30

6. Thickness:2.3mm

7. Item No.HJ-13B

Chrome Plated Pipe Connectors are used for assembled pipe rack products in different industry.
Parallel structure composed of two flexible pipes,with four sets of M6*25 bolts,the angled can

be adjusted by actual need. Comom used in the middle of the pipe rack products.
Pipe racking,workstation and trolley are made of metal pipe joints,flexible plastic coated pipe .
Racking system is simple and flexible to operate and adjuster.You only loosen the bolt and nut ,
and change the products what you want to be.

Product Description

1. Polishing after stamping,then smooth and glossy surface
2. High intensity
   Eco- friendly and good appearance
   Perfect wear resistance and Flexible
   Material: 2.5mm thickness SPCC steel pipe stamping and surface treatment.
3. Surface treatment:
   Electrophoresis/ Chrome/ galvanization
4. Technology: Stamping
5. Load capacity: Small/medium/heavy

Features:

1. Sample and easy operation

Because metal pipe joints connecting the lean pipes in pipe rack products what fixed

by M6*25

bolt and nut, only need a M6 spanner to tighten and loosen when assembly and

disassembly pipe racking system.

2. High smooth and glossy surface.

Before surface treatment, metal pipe connectors are sent to surface grinding after

stamping.Beautiful appearance and practical.

3, Environmental protection, can be reused

Flexible pipe and pipe joints are re-used pipe rack parts. Can be disassembled the

pipe rack products and used the lean pipes and pipe connectors to assemble other

products, Jut need to loosen the bolt and nut on the metal pipe joints.

4. Pipe rack products’ layer can be adjusted and re-modified. If you want to change

the shape or the height, you loosen the bolt and nut, and adjust to the suitable place.

That is OK.

Application:

4, Using Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack products

can be made into.Pipe and joint system are a flexible and DIY system consists of pipe,

joint and specialized accessories, assembled in a variety of configurations to serve

various function. It is commonly used as storage and handing equipment including rack, shelves, workstation and trolley.

In facts, almost everything can be manufactured by multiunit Pipe and pipe Joint
Our products are sold with competitive price and high quality.

Competitive Advantage:

1. Direct manufacturer, provide pipe rack system with high quality and best price.
2. Provide sample in free.
3. Pipe rack products and design solution supplied fast and freely
4. Best design oriented for your special requirements
5. Lifelong technical support
6. Professional team support
7. Standard Design
8. Concept proposal
9. 3D Drawing

Jingji’s perfect marketing service system brings high-level and high-value-added services for customers to ensure that each customer need is addressed timely, and efficiently.
